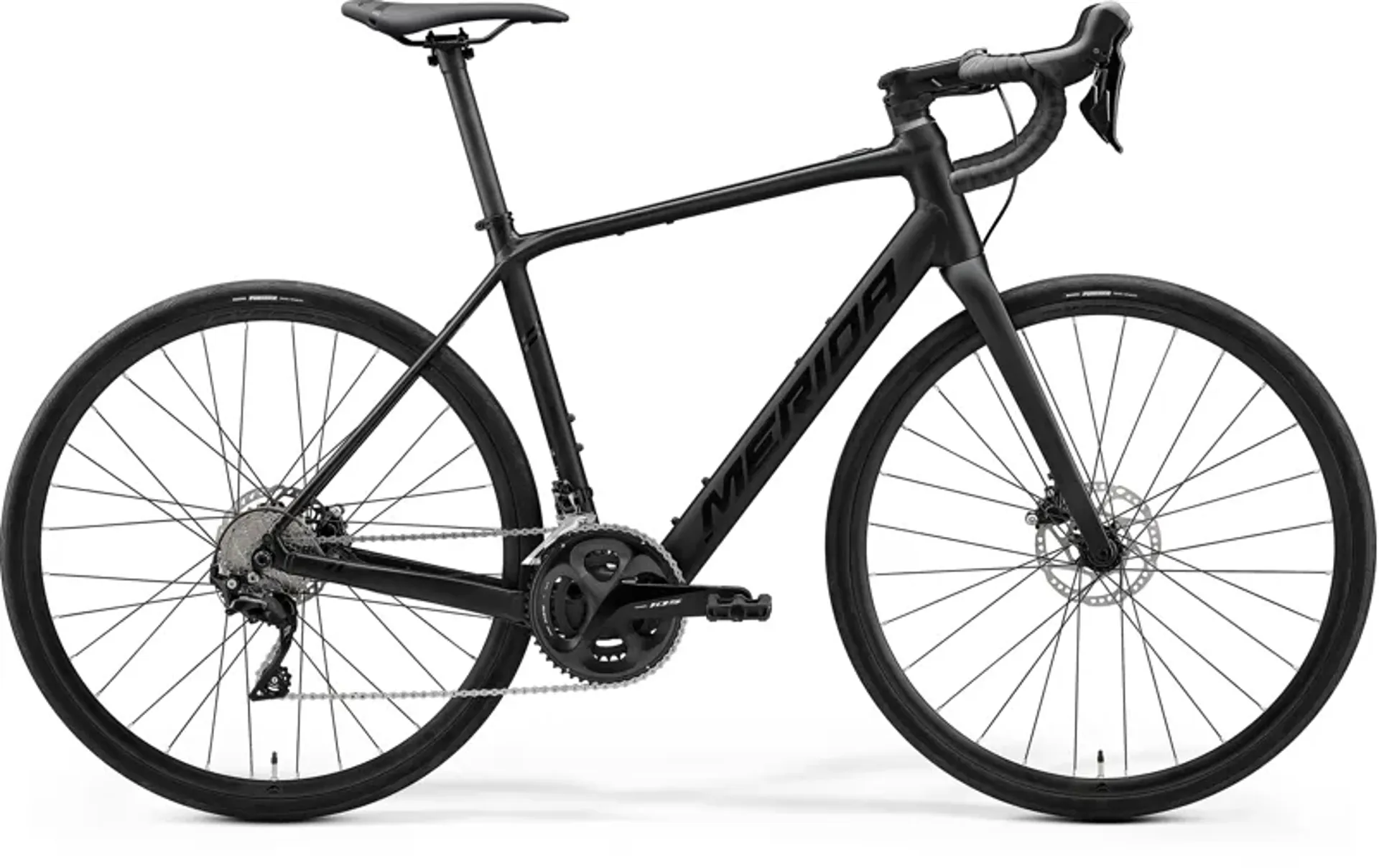

2022 Merida eScultura 400 MY22 Electric Bike in Black

Season:2023

Brand:Merida

Code:P-N916

The silhouette of the bike would not give away the fact the escultura benefits from a permanent tail wind. Cheating? Not when you're having this much fun.

The escultura 400 brings all the benefits of a pedal-assist motor to a serious road bike, delivering a way to keep up with the pack on the hills without a heavy, draggy feel when you're pedalling above the assistance limit. Shimano's benchmark 105 groupset and hydraulic disc brakes to deliver a ride that's as sporty as a regular bike.

Mahle's ebikemotion system uses a 40nm rear hub motor powered by a fully integrated 250wh battery hidden in the downtube. The low system weight combined with a carbon fork and sophisticated aluminium frame means the bike also feels lively even without power assistance. There is almost no drag at all from the motor when it is not engaged. The system has an iwoc button for controlling support levels and a sophisticated app provides an opportunity to adjust the riding feel as well as offering post-ride analysis features.

The frame has mounts for mudguards and rack and a neat hidden kickstand mount. Cable routing is through the frame with cables entering through a specific headset cap to keep the cockpit nice and neat.
Technical Information
  • Frame
    Lite - Hydroformed 6066 triple butted aluminium with integrated battery chamber, mounts for mudguards, rack and kickstand. 9mm QR axle standard, BSA BB standard. Max. tyre size 700 x 45c without mudguards, 700 x 42c with mudguards
  • Fork
    Mission CX CF3; carbon. Max. tyre size: 700 x 42c
  • Headset
    VP-MH-P16
  • Stem
    Merida Expert IR; aluminium; 31.8mm diameter; 5 degree rise. Stem length: 80mm (XXS/XS), 90mm (S), 100mm (SM/ML), 110mm (L/XL)
  • Handlebar
    Merida Expert CW; aluminium; Width: 400mm (XS/S), 420mm (M/L), 440mm (XL)
  • Grip
    Merida Expert
  • Brake Type
    Hydraulic disc
  • Brake Lever
    Shimano 105
  • Brake Calipers
    Front: Shimano 105; 2 piston hydraulic disc brake caliper with Shimano RT64; 160mm rotor Rear: Shimano 105; 2 piston hydraulic disc brake caliper with Shimano RT66; 160 mm rotor
  • Tyres
    Front: Maxxis Pursuer 700 x 32c; Kevlar bead, folding Rear: Maxxis Pursuer 700 x 32c; Kevlar bead, folding
  • Wheel Size
    700c
  • Wheels
    Rims: Merida Expert SL; 17mm inner rim width; 22mm depth; aluminium; Tubeless ready (tubeless tape and valves not included) Spokes: Black stainless Front Hub: VP CLK170F; 100x12mm; 28 spokes; Center lock Rear Hub: MAHLE X35+ Hub motor; 40Nm
  • Speeds
    22
  • Front Derailleur
    Shimano 105
  • Rear Derailleur
    Shimano 105; GS
  • Shift Levers
    Shimano 105
  • Chain
    KMC e11s
  • Cassette
    Shimano 105; 11-32 teeth; 11 speed
  • Chainset
    Shimano 105; 50-34 tooth chainset with 170mm - XS/S/SM/ML, 175mm - L/XL length crank
  • Bottom Bracket
    Shimano BSA
  • Pedals
    VP Components, VPE-891
  • Saddle
    Merida Comp SL; V-mount
  • Seat Post
    Merida Expert CC; carbon; 30.9mm diameter; in-line
  • Motor
    MAHLE B1-D; 250Wh, MAHLE X35+ Hub motor; 40Nm
  • Battery Capacity
    250 Wh
  • eBike Display
    Colour coded iWoc power button
